Solar Pump Inverter: SUNFLOW

solar, pump, inverter, battery, sunflow, motor, NECTEC

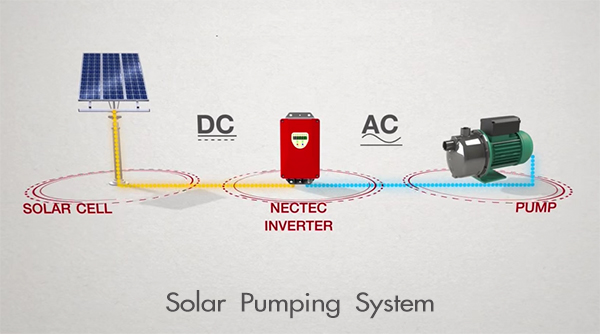

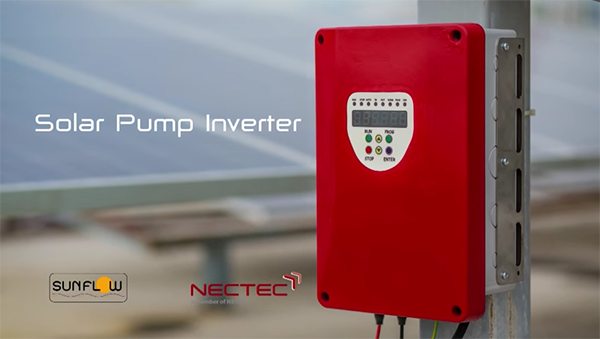

SUNFLOW is the inverter for solar pumping system without battery support. It can operate efficiently under wavering sunlight throughout the day. Its protection against lightning surges and protection against dust and water (at IP-55 level) make it a perfect solution for harsh outdoor environments.

solar, pump, inverter, battery, sunflow, motor, NECTEC
solar, pump, inverter, battery, sunflow, motor, NECTEC

Benefit:

  • High efficiency, low heat dissipation, strong water flow
  • Works with any type of AC pumps up to 3HP

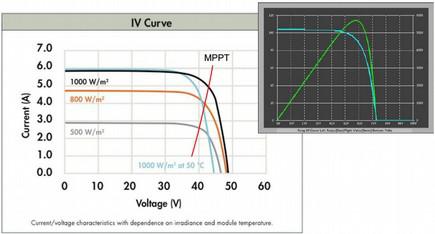

  • Employs Maximum Power Point Tracking (MPPT)
  • Wide input range from 60V to 440 VDC
  • Supports both 1-phase and 3-phase pumps
  • No battery required. Save cost on battery installation and maintenance

Specification:

  • Input Voltage 60-440Vdc
  • Input Current 0-8Adc
  • Max Frequency output 65Hz
  • Max Motor Current 12A
  • Operating Temp Range 5-40 Degree Celsius
  • Over Voltage Shutdown 450Vdc
  • Under Voltage Shutdown 60Vdc
  • Rated Motor
  • *** 3 phase motor 220V 50-60Hz 3phase 0.5-3Hp
  • *** Single phase PSC 220V 50-60Hz 0.5-2.5Hp
  • *** 2 phase or PSC removed capacitor run 220V 50-60Hz 0.5-3Hp
solar, pump, inverter, battery, sunflow, motor, NECTEC

Team:

solar, pump, inverter, battery, sunflow, motor, NECTEC
Industrial Prototype and Product Development Laboratory (IPP)
Innovation and Engineering Research Unit (IENRU)
E-mail: ipp@nectec.or.th

More information:

leonics
http://www.leonics.co.th
solar pump inverter battery sunflow motor NECTEC

Publication date June-22-2016 10:31
